Compensation Unit is an important technology in the field of industrial automation. It can achieve high-precision assembly operations, significantly improving the assembly accuracy and production efficiency. The design and manufacturing of the compensation unit require a high level of professional skills and precise control technologies. Its core lies in ensuring the accuracy and stability to achieve rapid adaptation and precise positioning of workpieces.
Improving assembly accuracy: With the application of the compensation unit, the assembly accuracy and production efficiency can be remarkably enhanced, and the risk of product quality problems can be reduced.
High flexibility: The Compensation Unit can be adapted to different workpieces and assembly requirements. By adjusting parameters and settings, rapid adaptation and precise positioning of workpieces can be achieved, enhancing the flexibility and adaptability of the production process.

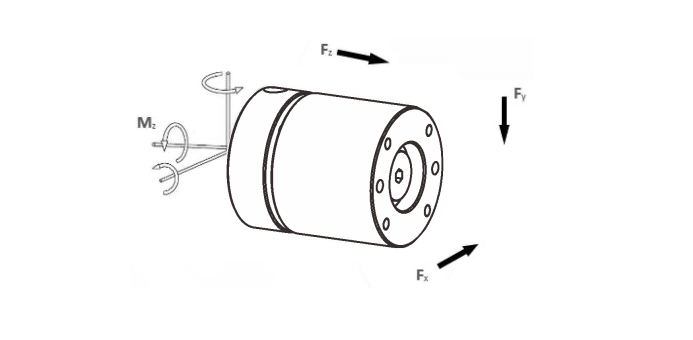

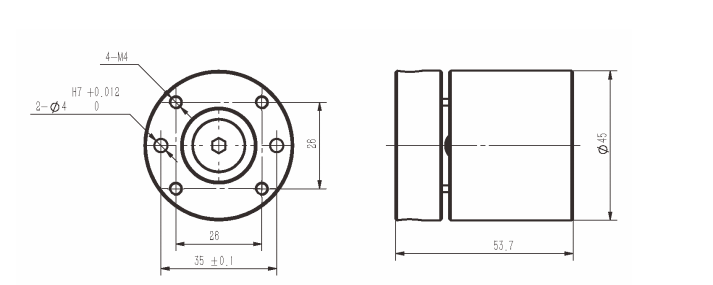

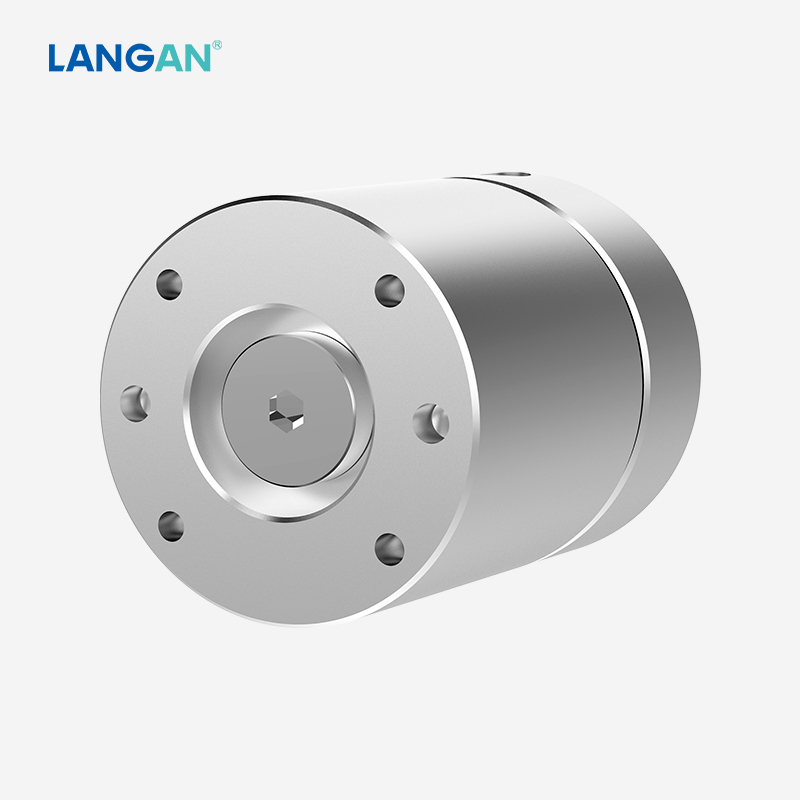

1. Product introduction: XYZ-45 compensator delivers X, Y, Z triaxial displacement together with angular floating compensation. With a compact structure, it maximizes space efficiency. It supports rapid changeover with straightforward mounting and disassembly, simplifies maintenance and cuts overall operational expenses.

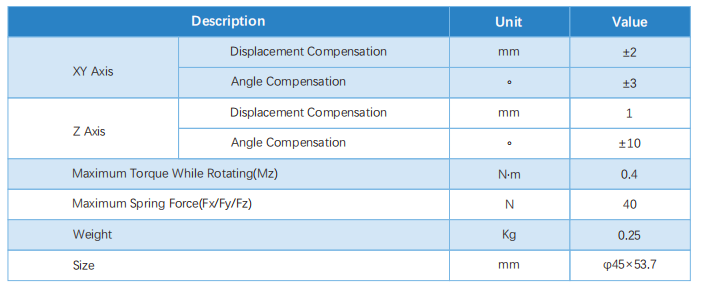

2. Technical Data:
