LA100 Quick Connector

 LANGAN® Quick Connector Catalog

 LANGAN® LA100 Pressure and Vacuum Test Quick Connector Selection Guide

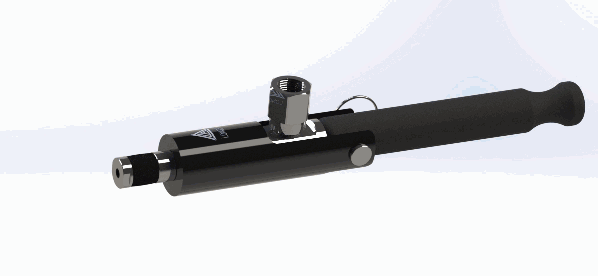

1. Product descrition: The LA100 Quick Connector provides a pressure-tight connection to straight tubes and bores (internal diameter) within seconds. The front seal of the connector is secured and compressed on the test piece. In this case it is important that during testing, the test piece and seals have to remain absolutely dry to ensure proper functioning and sealing. If the contact surface is stained with a lubricant such as water, the pressure should only be 1 bar or less.

The connector can also be used as a plug for a sealing port.

2. Operating instruction:

 Please strictly follow the operation steps. Improper operation can cause poor sealing, leakage and risk of connection failure resulting in damage or injury. Do not disconnect the connector while under pressure. Damage or injury may occur.

  ◆ Insert the test piece straightly  and carefully into the connector;

  ◆ Rotate the clamping lever by 90° downwards. Then the connector achieves a pressure-tight connection. Pull the connector lightly to make sure that the connector is firmly connected in place;

  ◆ Apply the required test pressure to media inlet to start the test process;

  ◆ At the end of the test process, vent the media line completely. Make sure to depressurize the connector before releasing the connection;

  ◆ Rotate the clamping lever and pull lightly on the connector straight back to disconnect it with the test piece.

3. Application:

Instantly connect and disconnect for sealing on straight tubes and bores. Main applications are vacuum testing, pressure testing, pressure decay testing, and helium testing etc.

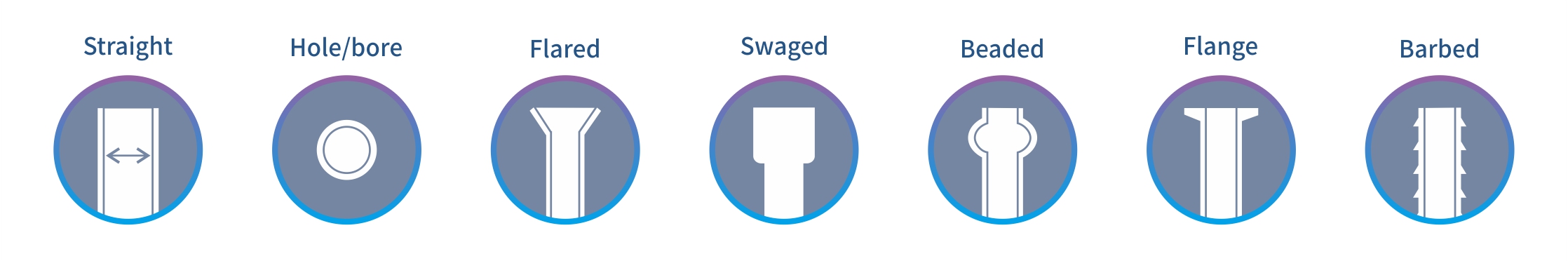

CONNECTS TO:

4. How to order:

LA100 quick connectors are designed for straight tubes and bores with internal diameter.. Normally we need the following information for orders:

◆ Part numbers                                                ◆ Pressure range

◆ Media/requested leak rate                          ◆ Temperature range

◆ Space requirement (interference contours, clearance, etc.)

◆ CAD drawing, 3D model of the test piece

★ For detailed part numbers and dimensions, please download  LA100 Quick Connector Selection Guide.

5. How to customize:

Custom LA100 quick connect connectors are designed to a specific client's demand to perfectly adapt to testing space, various connection ends and surface conditions. Please click and INQUIRE us.
